# 3D Basics

In the previous sections you've learned about the different building blocks to enrich your Flutter application with Augmented Reality using Wikitude.

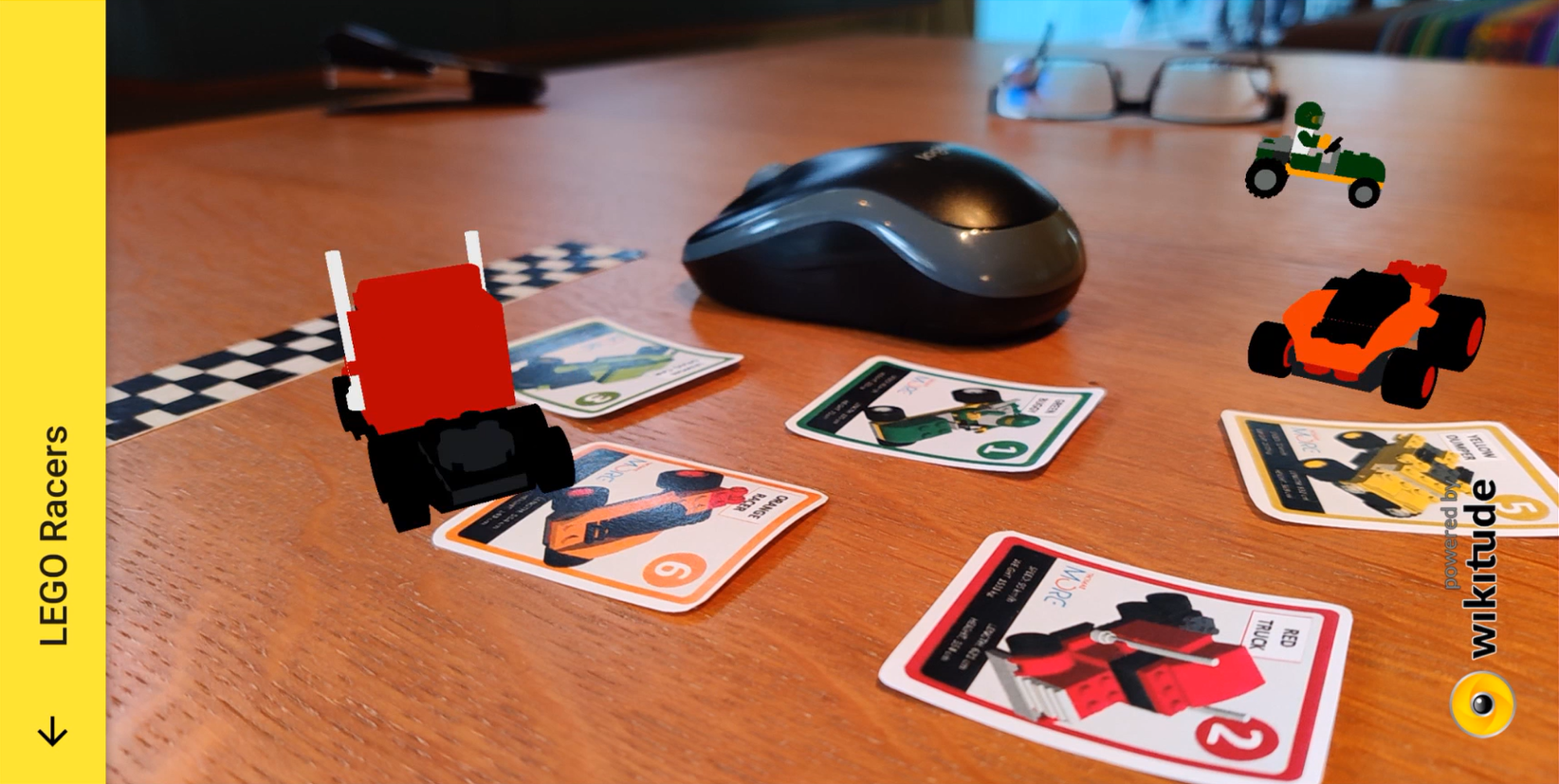

In this section we'll put everything together and build a really cool LEGO Racers App.
We'll explain some important 3D basics and use Property Animation.

Have a look at our facebook page to see the LEGO race cars in full action

# Using the Tools

MORE INFO

More information can be found in the Tools section.

# Convert the car models from .fbx to .wt3

Download the fbx models and extract them
Next use the Wikitude 3D Encoder to convert them to the .wt3 format
We'll use the models later in our project, but first let's have a look at the green buggy model in Wikitude 3D Encoder
Models are created in a 3D world using an x-, y- and z-axis. You can see the model and the axes (in white color) below

xyz

x-, y- and z-axis

As you can see, the designer didn't put the green buggy in the origin. Therefore when using the model later in our App, we have to move the buggy in the negative x-direction (a little bit to the left) and positive y-direction (backwards) (see yellow arrows). And if we want to rotate the buggy, we will use a rotation around the z-axis.

# Create a target collection

Let's create a target collection that you can use to detect and track images within your ARchitect World
Download the car cards and extract them
Use Wikitude Studio to create a file legocards.wtc

cards

# Creating a Flutter/Wikitude App

MORE DETAIL

Following steps are explained in more detail in the Get started section. You can find more information there.

# Create the Flutter App

Create a new Flutter app named lego_app
Create the folders pages and widgets
Delete widget_test.dart
Copy the Wikitude SDK (plugin folder) and add the Wikitude plugin to the dependencies
Change the APP ID to be.thomasmore.ar
Change the minSdkVersion to 23 and the targetSdkVersion to 30
Add the right entries to the manifest file

Replace the content of main.dart with

import 'package:flutter/material.dart';
import './pages/home.dart';

void main() {
  runApp(const LegoApp());
}

class LegoApp extends StatelessWidget {
  const LegoApp({Key? key}) : super(key: key);

  // This widget is the root of your application.
  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      debugShowCheckedModeBanner: false,
      title: 'LEGO App',
      theme: ThemeData(
        primarySwatch: Colors.yellow,
        visualDensity: VisualDensity.adaptivePlatformDensity,
      ),
      home: const HomePage(),
    );
  }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

Create a folder assets in the root folder of you app.
Download this image of a LEGO buggy and copy it into the assets folder.
Update your pubspec.yaml with the following asset:

# The following section is specific to Flutter.
flutter:

  # The following line ensures that the Material Icons font is
  # included with your application, so that you can use the icons in
  # the material Icons class.
  uses-material-design: true

  assets:
    - assets/green.png

1
2
3
4
5
6
7
8
9
10

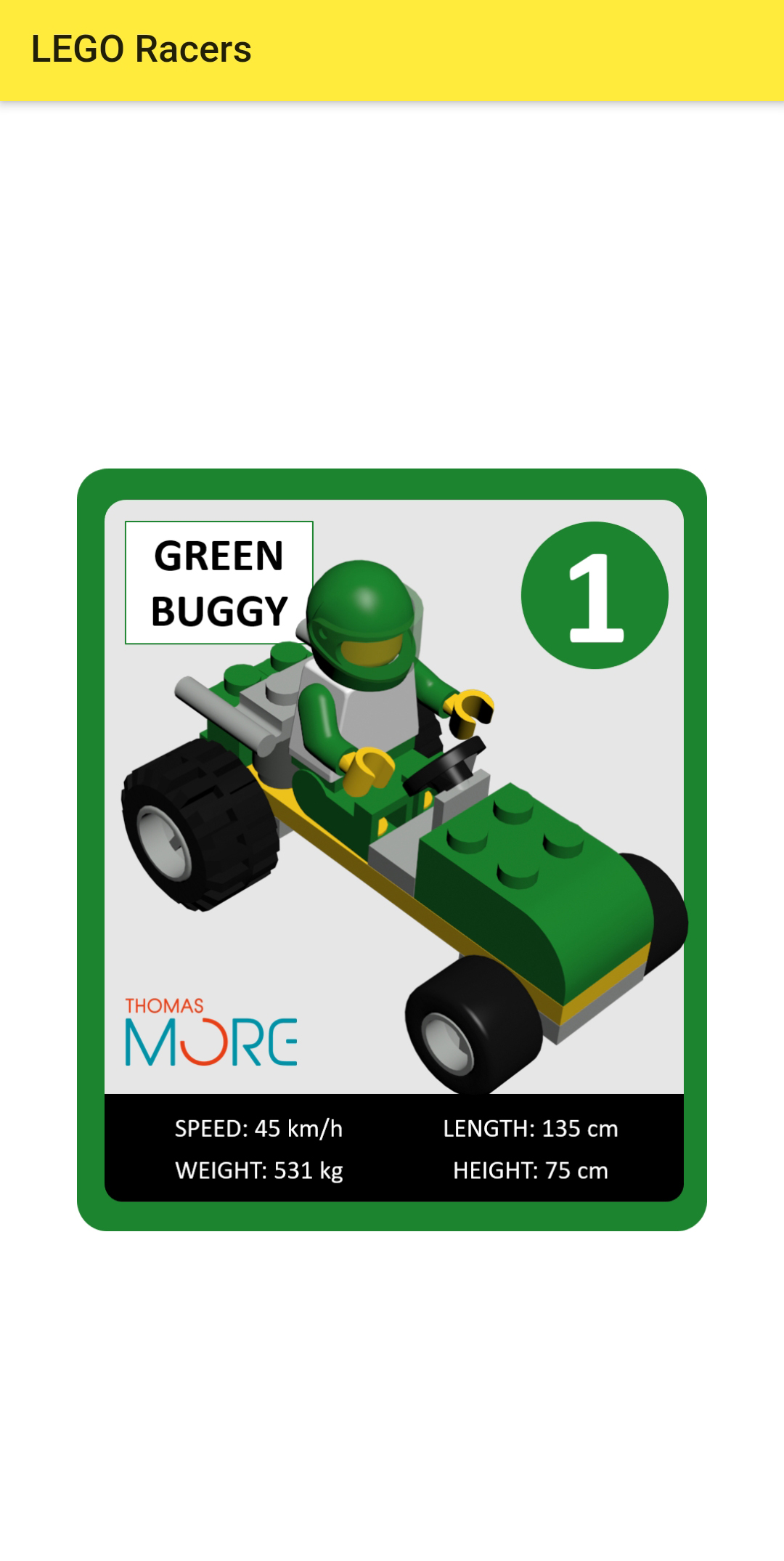

Create the page home.dart (in the pages folder) with following code

import 'package:flutter/material.dart';
import 'wikitude.dart';

import 'package:augmented_reality_plugin_wikitude/wikitude_plugin.dart';
import 'package:augmented_reality_plugin_wikitude/wikitude_response.dart';

class HomePage extends StatefulWidget {
  const HomePage({Key? key}) : super(key: key);

  @override
  _HomePageState createState() => _HomePageState();
}

class _HomePageState extends State<HomePage> {
  List<String> features = ["image_tracking"];

  @override
  Widget build(BuildContext context) {
    AssetImage asset = const AssetImage('assets/green.png');
    Image image = Image(image: asset, width: 400.0, height: 400.0);

    return Scaffold(
      appBar: AppBar(
        title: const Text("LEGO Racers"),
      ),
      body: Container(
        color: Colors.white,
        child: Center(
          child: GestureDetector(
            onTap: () {
              navigateToWikitude();
            },
            child: Container(
              child: image,
              padding: const EdgeInsets.only(top: 20.0),
            ),
          ),
        ),
      ),
    );
  }

  void navigateToWikitude() {
    checkDeviceCompatibility().then((value) => {
          if (value.success)
            {
              requestARPermissions().then((value) => {
                    if (value.success)
                      {
                        Navigator.push(
                          context,
                          MaterialPageRoute(
                              builder: (context) => const WikitudePage()),
                        )
                      }
                    else
                      {
                        debugPrint("AR permissions denied"),
                        debugPrint(value.message)
                      }
                  })
            }
          else
            {debugPrint("Device incompatible"), debugPrint(value.message)}
        });
  }

  Future<WikitudeResponse> checkDeviceCompatibility() async {
    return await WikitudePlugin.isDeviceSupporting(features);
  }

  Future<WikitudeResponse> requestARPermissions() async {
    return await WikitudePlugin.requestARPermissions(features);
  }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75

Create the page wikitude.dart (in the pages folder) with following code

import 'package:flutter/material.dart';
import '../widgets/arworld.dart';

class WikitudePage extends StatefulWidget {
  const WikitudePage({Key? key}) : super(key: key);

  @override
  _WikitudePageState createState() => _WikitudePageState();
}

class _WikitudePageState extends State<WikitudePage> {
  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: const Text("LEGO Racers"),
      ),
      body: const Center(
          // Here we load the Widget with the LEGO Racers experience
          child: ARWorldWidget()),
    );
  }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

Create the widget arworld.dart (in the widgets folder) with following code

import 'package:augmented_reality_plugin_wikitude/architect_widget.dart';
import 'package:augmented_reality_plugin_wikitude/startupConfiguration.dart';
import 'package:flutter/material.dart';

class ARWorldWidget  extends StatefulWidget {
  const ARWorldWidget ({Key? key}) : super(key: key);

  @override
  _ARWorldWidgetState createState() =>
      _ARWorldWidgetState();
}

class _ARWorldWidgetState extends State<ARWorldWidget>
    with WidgetsBindingObserver {
  late ArchitectWidget architectWidget;
  String wikitudeTrialLicenseKey =
      "Replace with the Wikitude EDU License Key from Canvas";
  StartupConfiguration startupConfiguration = StartupConfiguration(
      cameraPosition: CameraPosition.BACK,
      cameraResolution: CameraResolution.AUTO);
  List<String> features = ["image_tracking"];

  @override
  void initState() {
    super.initState();

    WidgetsBinding.instance?.addObserver(this);

    architectWidget = ArchitectWidget(
      onArchitectWidgetCreated: onArchitectWidgetCreated,
      licenseKey: wikitudeTrialLicenseKey,
      startupConfiguration: startupConfiguration,
      features: features,
    );
  }

  @override
  Widget build(BuildContext context) {
    return Container(
      decoration: const BoxDecoration(color: Colors.black),
      child: architectWidget, //ar widget
    );
  }

  @override
  void didChangeAppLifecycleState(AppLifecycleState state) {
    switch (state) {
      case AppLifecycleState.paused:
        architectWidget.pause();
        break;
      case AppLifecycleState.resumed:
        architectWidget.resume();
        break;

      default:
    }
  }

  @override
  void dispose() {
    architectWidget.pause();
    architectWidget.destroy();
    WidgetsBinding.instance?.removeObserver(this);
    super.dispose();
  }

  Future<void> onArchitectWidgetCreated() async {
    architectWidget.load(
        "wikitude/index.html",
        onLoadSuccess,
        onLoadFailed);
    architectWidget.resume();
  }

  Future<void> onLoadSuccess() async {
    debugPrint("Successfully loaded Architect World");
  }

  Future<void> onLoadFailed(String error) async {
    debugPrint("Failed to load Architect World");
    debugPrint(error);
  }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83

Wikitude EDU License key

Do not forget to insert the license key from Canvas in the code above!

# Add the HTML & JS code

Download the LEGO Racers Wikitude code
Extract the archive and copy the wikitude folder into the root folder of your LEGO Racers App
As you can see, the .wt3 models of the LEGO cars are already in the models folder. Normally you should use your own 3D models.
Also the legocards.wtc and the png's are already into the assets folder

wikitude

Update your pubspec.yaml with the following assets:

# The following section is specific to Flutter.
flutter:

  # The following line ensures that the Material Icons font is
  # included with your application, so that you can use the icons in
  # the material Icons class.
  uses-material-design: true

  assets:
    - assets/green.png
    - wikitude/
    - wikitude/js/
    - wikitude/css/
    - wikitude/assets/
    - wikitude/assets/models/

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

# Gradle version

Change the Gradle version to a lower one (3.6.0) in the android\build.gradle file
Remove the abiFilters in the android\app\build.gradle file (if it's there)

# Run the App

Download the LEGO Racers cards. Print and cut out the cards.

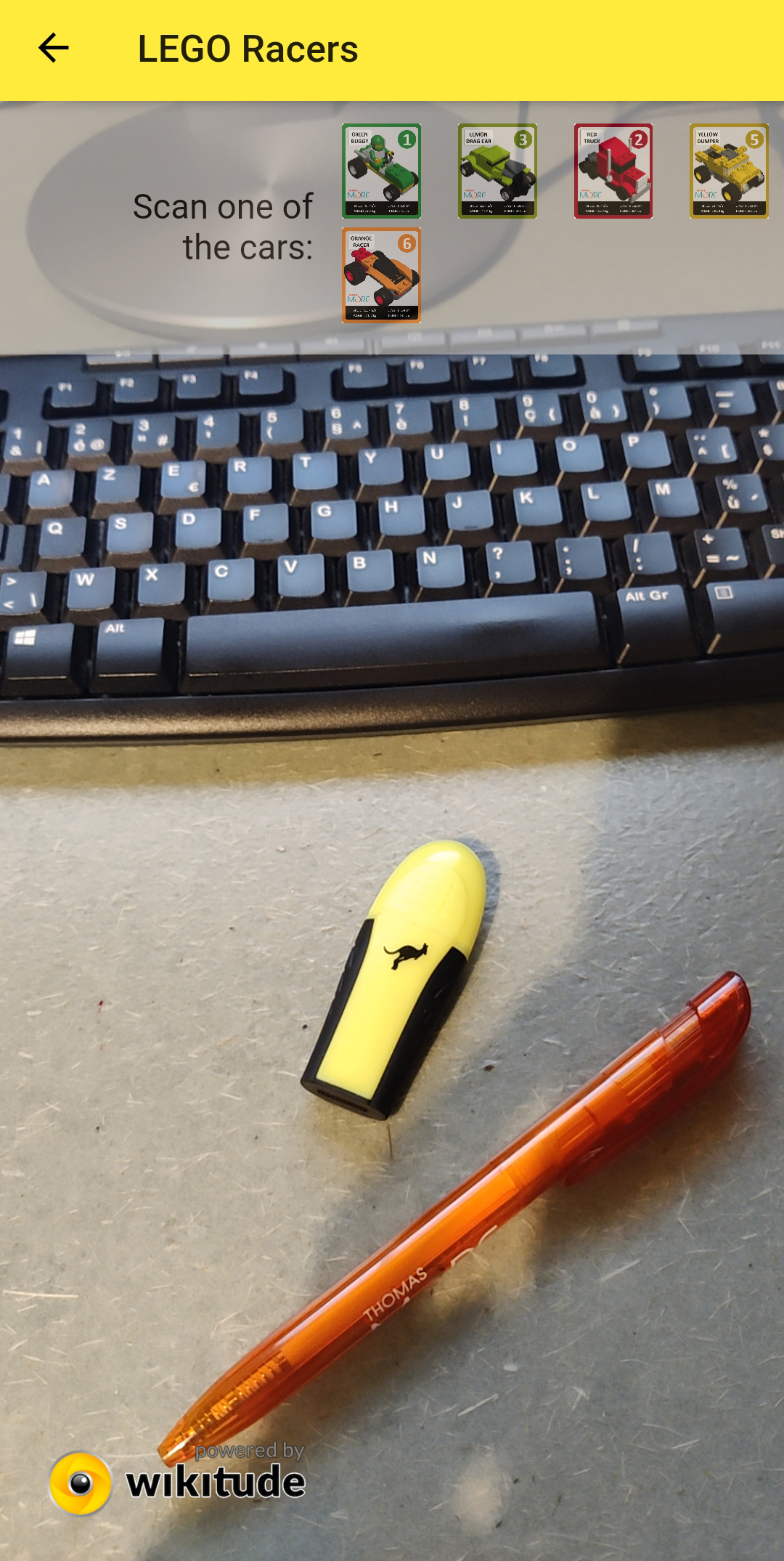

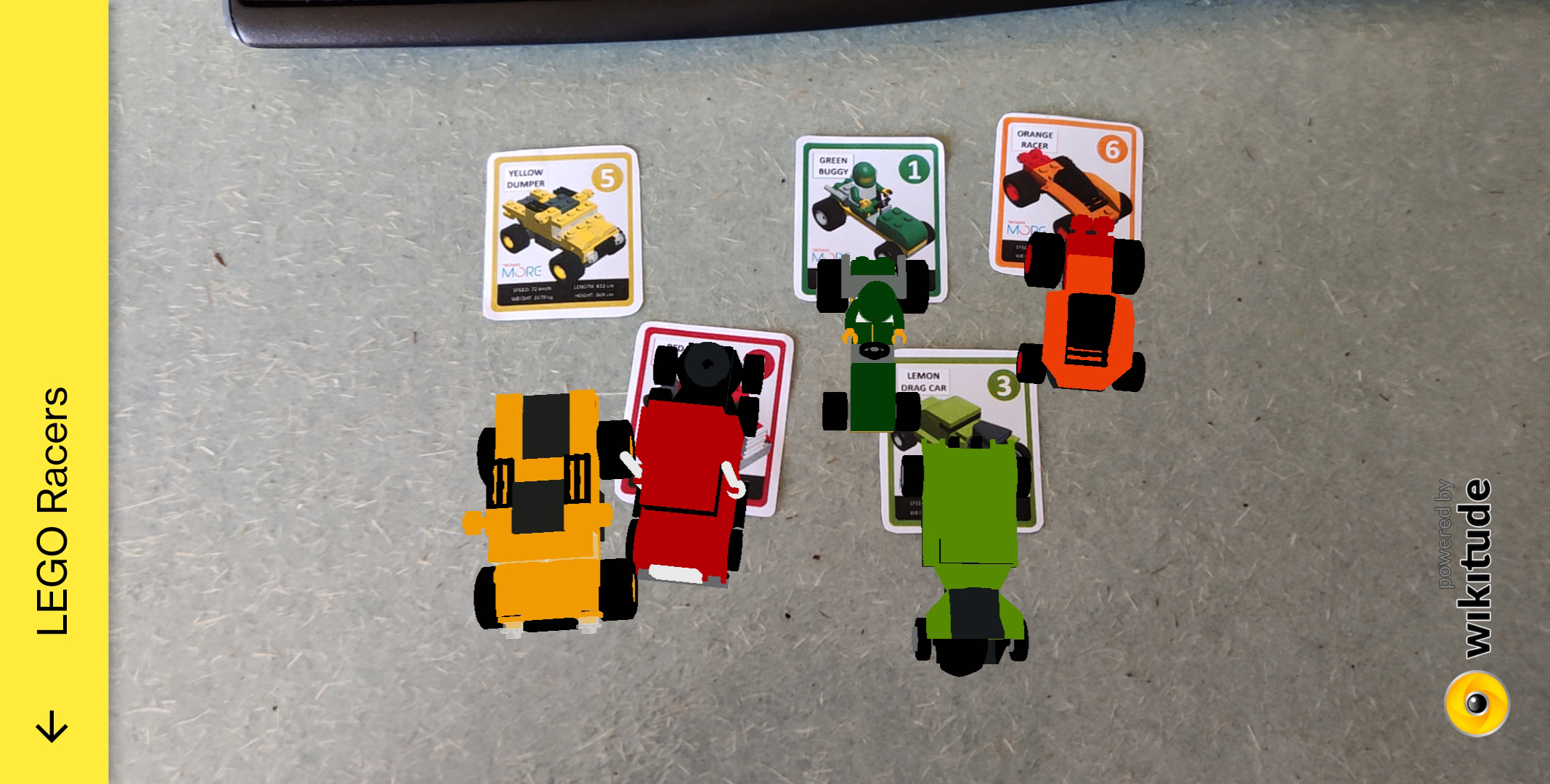

Run the App and try it out.

# Adding Property Animation

# 3D Basics

Before we add the Property Animation, let's explain some 3D basics
Open multiplesimultaneoustargets.js in the wikitude folder. The use of the .wtc and .wt3 files is already explained in the Tools section of this course. Now we'll concentrate on the 3D part
There are five models (or cars) and every model has four properties that are initialized in the beginning of the code. If necessary, you can create your own properties as well. We'll explain the properties in a moment.

    carSettings: {
        lemon: {
            scale: 0.4,
            translateX: 0,
            translateY: 0,
            time: 2000,
        },
        green: {
            scale: 0.4,
            translateX: -0.22,
            translateY: 1.7,
            time: 2500,
        },
        ...
    },

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

The properties are used when creating the 3D model based on which target was recognized

    onImageRecognized: function(target) {
        /*
            Create 3D model based on which target was recognized.
        */
        var model = new AR.Model("assets/models/" + target.name + ".wt3", {
            translate: {
                x: World.carSettings[target.name].translateX,
                y: World.carSettings[target.name].translateY,
            },
            scale: World.carSettings[target.name].scale,
            rotate: {
                z: 0,
            },
            onError: World.onError
        });

        /* Adds the model as augmentation for the currently recognized target. */
        this.addImageTargetCamDrawables(target, model);

        World.hideInfoBar();
    },

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

Let's show the coordinate system of our green buggy once again

xyz

# TRANSLATE

We already know that the designer didn't put the green buggy in the origin. If we want the buggy in the middle of the card (the origin of our AR scene), we need to move the buggy in the negative x-direction (a little bit to the left) and positive y-direction (backwards) (see yellow arrows).
And that's exactly what we've specified in the translateX and translateY properties of our green buggy model

        green: {
            scale: 0.4,
            translateX: -0.22,
            translateY: 1.7,
            time: 2500,
        },
        ...
    },

1
2
3
4
5
6
7
8

# SCALE

When you use models from different designers, not every model will be at the same size. The mice model of designer A could be bigger then the tree model of designer B, which of course makes no sence if you would use them in the same AR scene. Normally mices are smaller than trees.
You can use the scale property in order to achieve the correct size proportions

# ROTATE

You can rotate your model using the three axes (using a value between 0° and 360°).

# Exercise

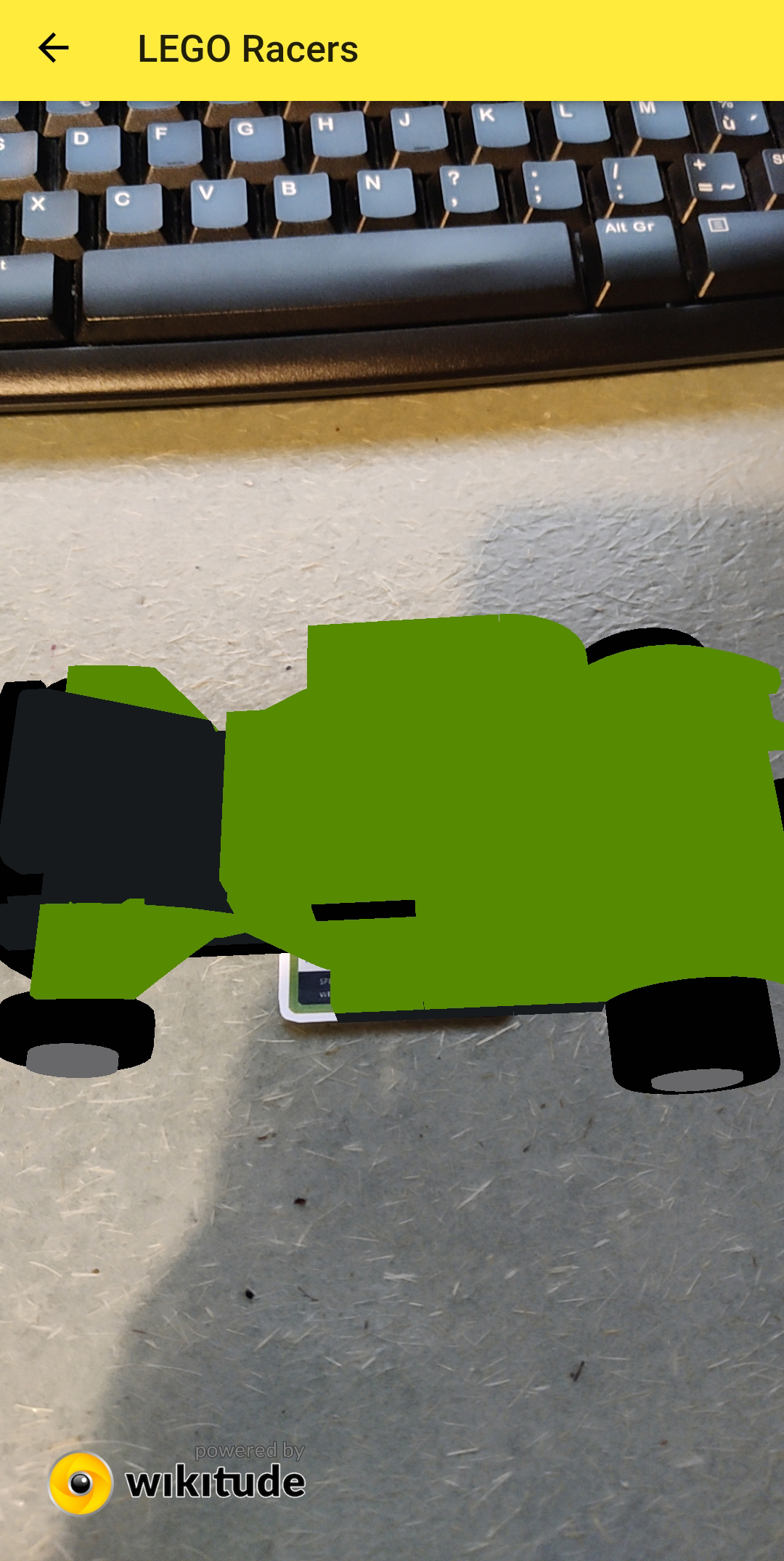

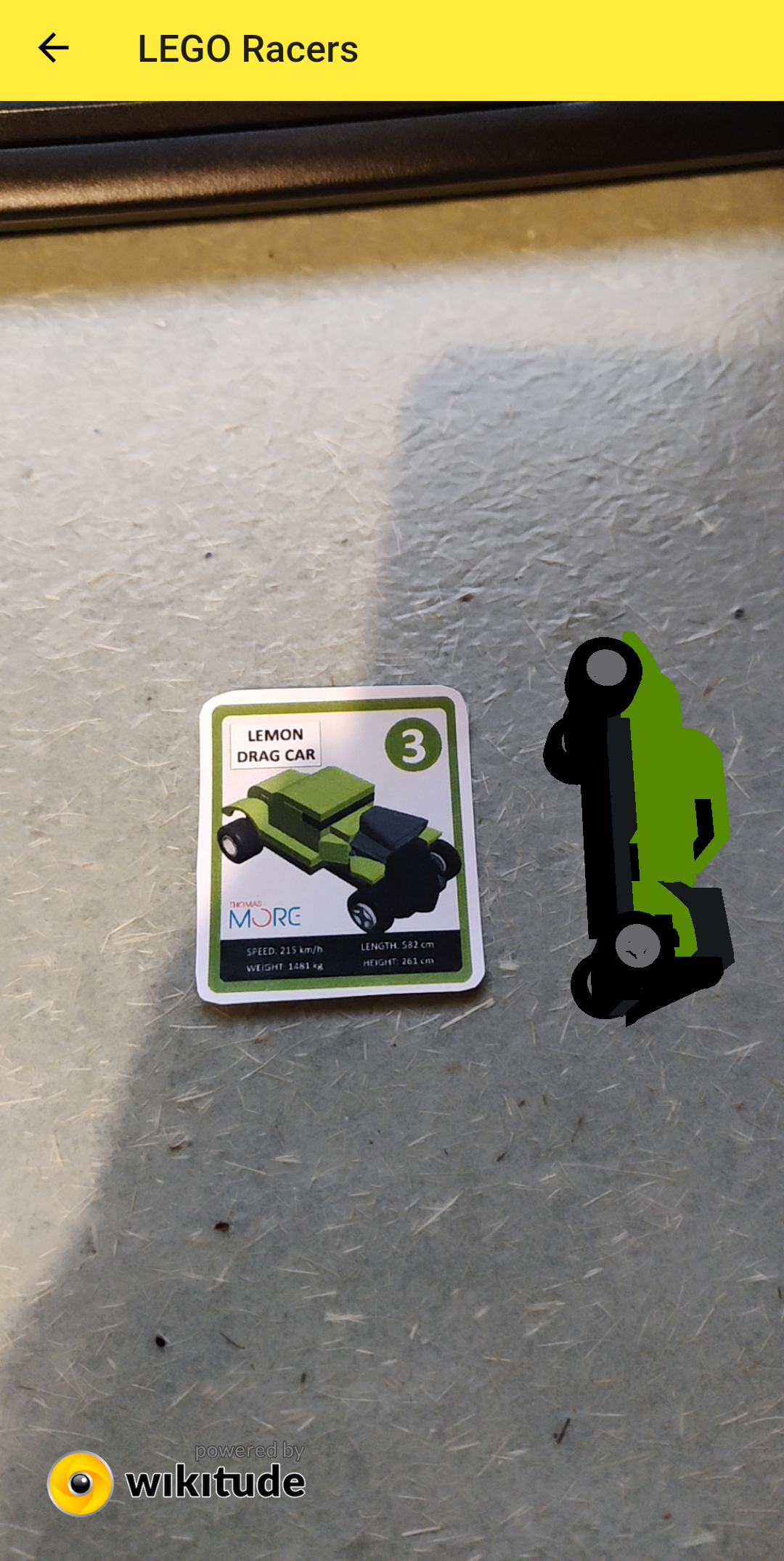

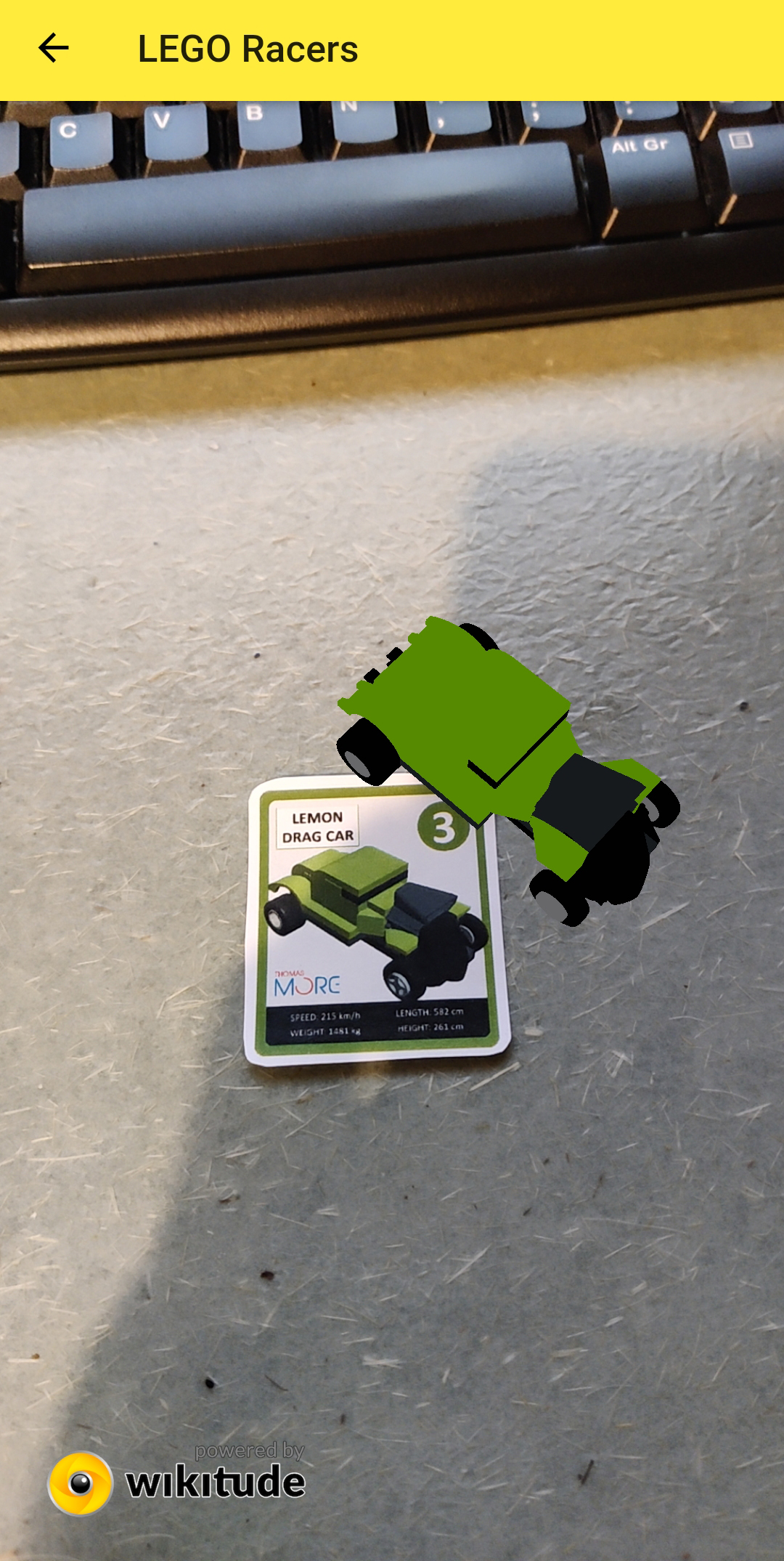

Use the lemon drag racer card and try to create these AR scenes

# Bring the 3D scene to life

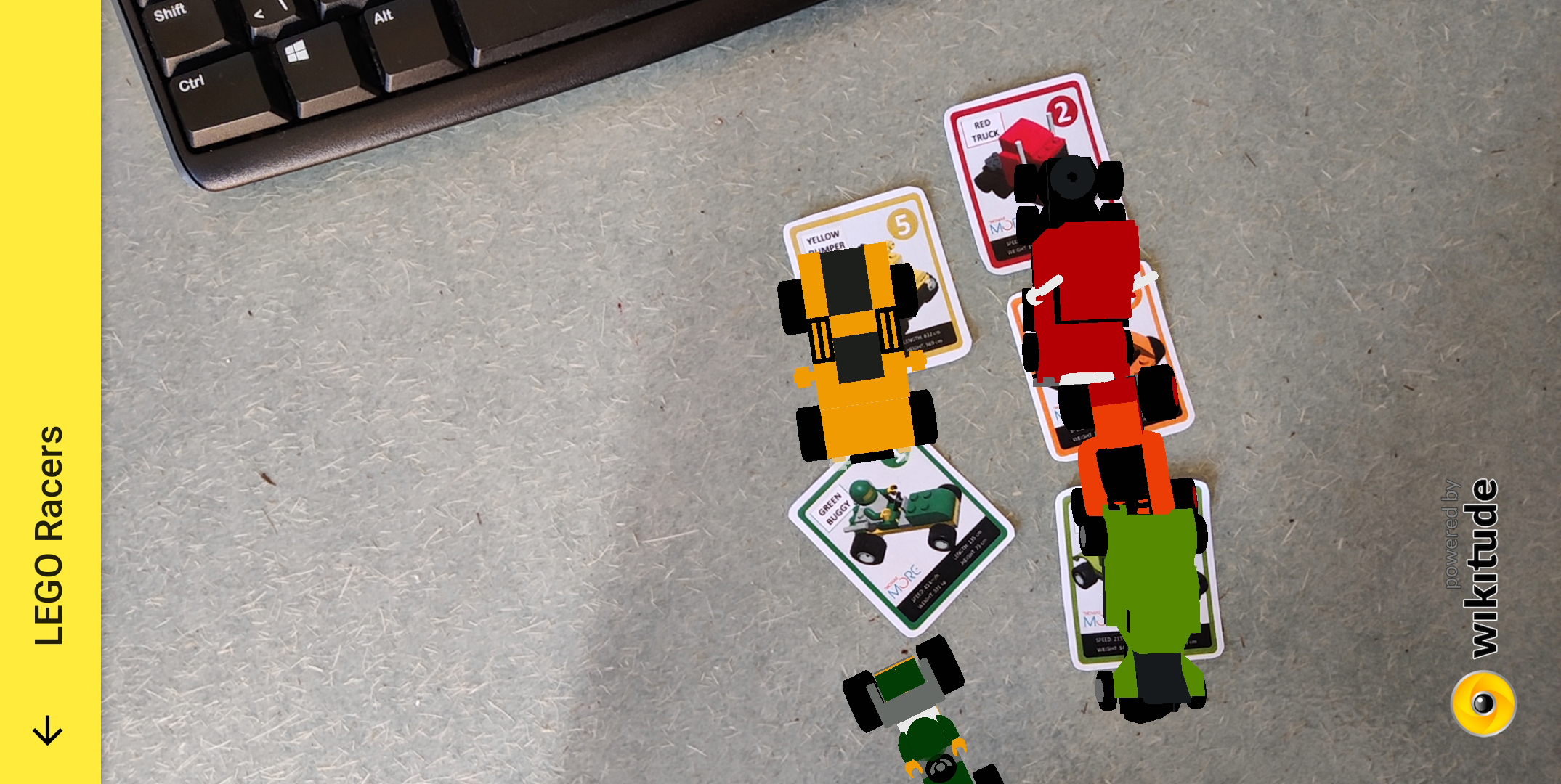

# DRIVE FORWARD AND BACKWARD

Undo all the modifications you've made
Add the function animate to your World object

    animate: function(car, offsetX, offsetY, time) {
        var distance = 2;

        var forward = new AR.PropertyAnimation(car, 'translate.y', offsetY, offsetY  + distance * -1.5, time);
        var backward = new AR.PropertyAnimation(car, 'translate.y', offsetY  + distance * -1.5, offsetY, time);

        var animationGroup = new AR.AnimationGroup(AR.CONST.ANIMATION_GROUP_TYPE.SEQUENTIAL, [forward, backward]);

        animationGroup.start(-1);
    },

1
2
3
4
5
6
7
8
9
10

code	description
`new AR.PropertyAnimation(car`	Add an animation to the car model
`'translate.y'`	The property you want to animate
`offsetY`	Start value
`offsetY + distance * -1.5`	End value
`time`	duration of the animation (in milliseconds)
`new AR.AnimationGroup(AR.CONST.ANIMATION_GROUP_TYPE.SEQUENTIAL,`	Create a new animationgroup which is a sequential combination of
`[forward, backward]`	driving forward and driving backward
`animationGroup.start(-1);`	Repeat this animation infinitely

Call the animate function

    this.addImageTargetCamDrawables(target, model);

    setTimeout(function() { World.animate(model, World.carSettings[target.name].translateX, World.carSettings[target.name].translateY, World.carSettings[target.name].time); }, 2000);

    World.hideInfoBar();

1
2
3
4
5

code	description
`setTimeout(function() { World.animate(model, ...); }, 2000);`	Wait for two seconds and then add the animation to the model

See what happens

Of course, you can animate the other properties (translate.x, rotate.z, scale, ...) as well

# DRIVE IN CIRCLES

Replace the animate function with

    animate: function(car, offsetX, offsetY, roundingTime) {
        var distance = 2;

        var northSouth1 = new AR.PropertyAnimation(car, 'translate.y', offsetY, offsetY  + distance * -1, roundingTime, {
            type: AR.CONST.EASING_CURVE_TYPE.EASE_OUT_SINE
        });
        var eastWest1 = new AR.PropertyAnimation(car, 'translate.x', offsetX, offsetX + distance * -1, roundingTime, {
            type: AR.CONST.EASING_CURVE_TYPE.EASE_IN_SINE
        });

        var northSouth2 = new AR.PropertyAnimation(car, 'translate.y', offsetY  + distance * -1, offsetY, roundingTime, {
            type: AR.CONST.EASING_CURVE_TYPE.EASE_IN_SINE
        });
        var eastWest2 = new AR.PropertyAnimation(car, 'translate.x', offsetX + distance * -1, offsetX + distance * -2, roundingTime, {
            type: AR.CONST.EASING_CURVE_TYPE.EASE_OUT_SINE
        });

        var northSouth3 = new AR.PropertyAnimation(car, 'translate.y', offsetY, offsetY  + distance * 1, roundingTime, {
            type: AR.CONST.EASING_CURVE_TYPE.EASE_OUT_SINE
        });
        var eastWest3 = new AR.PropertyAnimation(car, 'translate.x', offsetX + distance * -2, offsetX + distance * -1, roundingTime, {
            type: AR.CONST.EASING_CURVE_TYPE.EASE_IN_SINE
        });

        var northSouth4 = new AR.PropertyAnimation(car, 'translate.y', offsetY  + distance * 1, offsetY, roundingTime, {
            type: AR.CONST.EASING_CURVE_TYPE.EASE_IN_SINE
        });
        var eastWest4 = new AR.PropertyAnimation(car, 'translate.x', offsetX + distance * -1, offsetX, roundingTime, {
            type: AR.CONST.EASING_CURVE_TYPE.EASE_OUT_SINE
        });

        var q1 = new AR.AnimationGroup(AR.CONST.ANIMATION_GROUP_TYPE.PARALLEL, [northSouth1, eastWest1]);
        var q2 = new AR.AnimationGroup(AR.CONST.ANIMATION_GROUP_TYPE.PARALLEL, [northSouth2, eastWest2]);
        var q3 = new AR.AnimationGroup(AR.CONST.ANIMATION_GROUP_TYPE.PARALLEL, [northSouth3, eastWest3]);
        var q4 = new AR.AnimationGroup(AR.CONST.ANIMATION_GROUP_TYPE.PARALLEL, [northSouth4, eastWest4]);

        var cicularAnimationGroup = new AR.AnimationGroup(AR.CONST.ANIMATION_GROUP_TYPE.SEQUENTIAL, [q1, q2, q3, q4]);

        cicularAnimationGroup.start(-1);
    },

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

Run your App and see what happens
This function is a little bit difficult to explain in text. But because a picture is worth a thousand words, hopefully the image below will clarify things out

circle

REMARK

Have you noticed that it is possible to combine multiple animations: PARALLEL or SEQUENTIAL!
You can also define a smooth curve using EASE_OUT_SINE and EASE_IN_SINE! More info can be found here

# DRIVE IN CIRCLES AND ROTATE AT THE SAME TIME

Our cars already drive in circles but the direction of our cars is a little weird (always in the South direction)
Let's try to rotate our car in the right direction while driving
Use this animate function

    animate: function(car, offsetX, offsetY, roundingTime) {
        var distance = 3;

        var northSouth1 = new AR.PropertyAnimation(car, 'translate.y', offsetY, offsetY  + distance * -1, roundingTime, {
            type: AR.CONST.EASING_CURVE_TYPE.EASE_OUT_SINE
        });
        var eastWest1 = new AR.PropertyAnimation(car, 'translate.x', offsetX, offsetX + distance * -1, roundingTime, {
            type: AR.CONST.EASING_CURVE_TYPE.EASE_IN_SINE
        });
        var rotate1 = new AR.PropertyAnimation(car, 'rotate.z', 0, -90, roundingTime);

        var northSouth2 = new AR.PropertyAnimation(car, 'translate.y', offsetY  + distance * -1, offsetY, roundingTime, {
            type: AR.CONST.EASING_CURVE_TYPE.EASE_IN_SINE
        });
        var eastWest2 = new AR.PropertyAnimation(car, 'translate.x', offsetX + distance * -1, offsetX + distance * -2, roundingTime, {
            type: AR.CONST.EASING_CURVE_TYPE.EASE_OUT_SINE
        });
        var rotate2 = new AR.PropertyAnimation(car, 'rotate.z', -90, -180, roundingTime);

        var northSouth3 = new AR.PropertyAnimation(car, 'translate.y', offsetY, offsetY  + distance * 1, roundingTime, {
            type: AR.CONST.EASING_CURVE_TYPE.EASE_OUT_SINE
        });
        var eastWest3 = new AR.PropertyAnimation(car, 'translate.x', offsetX + distance * -2, offsetX + distance * -1, roundingTime, {
            type: AR.CONST.EASING_CURVE_TYPE.EASE_IN_SINE
        });
        var rotate3 = new AR.PropertyAnimation(car, 'rotate.z', -180, -270, roundingTime);

        var northSouth4 = new AR.PropertyAnimation(car, 'translate.y', offsetY  + distance * 1, offsetY, roundingTime, {
            type: AR.CONST.EASING_CURVE_TYPE.EASE_IN_SINE
        });
        var eastWest4 = new AR.PropertyAnimation(car, 'translate.x', offsetX + distance * -1, offsetX, roundingTime, {
            type: AR.CONST.EASING_CURVE_TYPE.EASE_OUT_SINE
        });
        var rotate4 = new AR.PropertyAnimation(car, 'rotate.z', -270, -360, roundingTime);

        var q1 = new AR.AnimationGroup(AR.CONST.ANIMATION_GROUP_TYPE.PARALLEL, [northSouth1, eastWest1, rotate1]);
        var q2 = new AR.AnimationGroup(AR.CONST.ANIMATION_GROUP_TYPE.PARALLEL, [northSouth2, eastWest2, rotate2]);
        var q3 = new AR.AnimationGroup(AR.CONST.ANIMATION_GROUP_TYPE.PARALLEL, [northSouth3, eastWest3, rotate3]);
        var q4 = new AR.AnimationGroup(AR.CONST.ANIMATION_GROUP_TYPE.PARALLEL, [northSouth4, eastWest4, rotate4]);

        var cicularAnimationGroup = new AR.AnimationGroup(AR.CONST.ANIMATION_GROUP_TYPE.SEQUENTIAL, [q1, q2, q3, q4]);

        cicularAnimationGroup.start(-1);
    },

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44

Let's use an image again to explain the rotation of the car

rotate

Run the App and watch the cars chasing each other on your desk
You might see that some of the cars are rotating a little bit strange, they are drifting like Mario Kart. Because the models are not positioned exactly in the middle by the designer, the rotation point is also not in the center of the car. That's why.

Maybe you can try to modify the code and make the cars follow a different path

# 3D Basics

# Using the Tools

# Convert the car models from .fbx to .wt3

# Create a target collection

# Creating a Flutter/Wikitude App

# Create the Flutter App

# Add the pages and widget

# Add the HTML & JS code

# Gradle version

# Run the App

# Adding Property Animation

# 3D Basics

# TRANSLATE

# SCALE

# ROTATE

# Exercise

# Bring the 3D scene to life

# DRIVE FORWARD AND BACKWARD

# DRIVE IN CIRCLES

# DRIVE IN CIRCLES AND ROTATE AT THE SAME TIME
