# Creating your first app

# Create a new Flutter project

Folder name

Make sure that all the parent folders don't contain spaces or special characters as this might break the build!

There are two ways to create a new flutter project:

Command line: flutter create hello_flutter
- hello_flutter = application name
VS Code

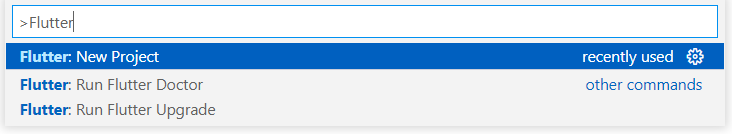

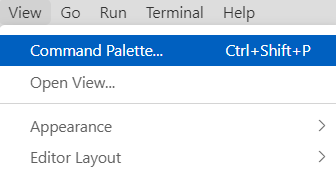

- View - Command Palette (or Ctrl+Shift+P)
- Flutter: New Project

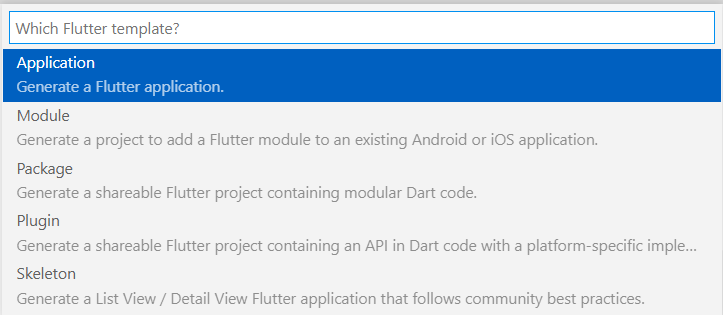

- Choose the Application template
- Choose the folder where you save all your Flutter projects (create one if needed)

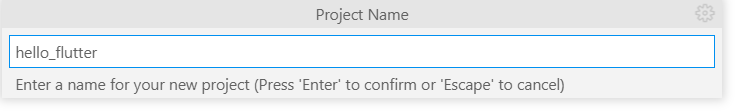

- Enter the project name hello_flutter

REMARK

There are some conventions about the name of a flutter application:

only lower case characters
separate words are combined with underscore(s)

# Run the Flutter App

You can run your Flutter application in three different ways.

# Chrome

The simplest method (and fastest) is to just use your browser.

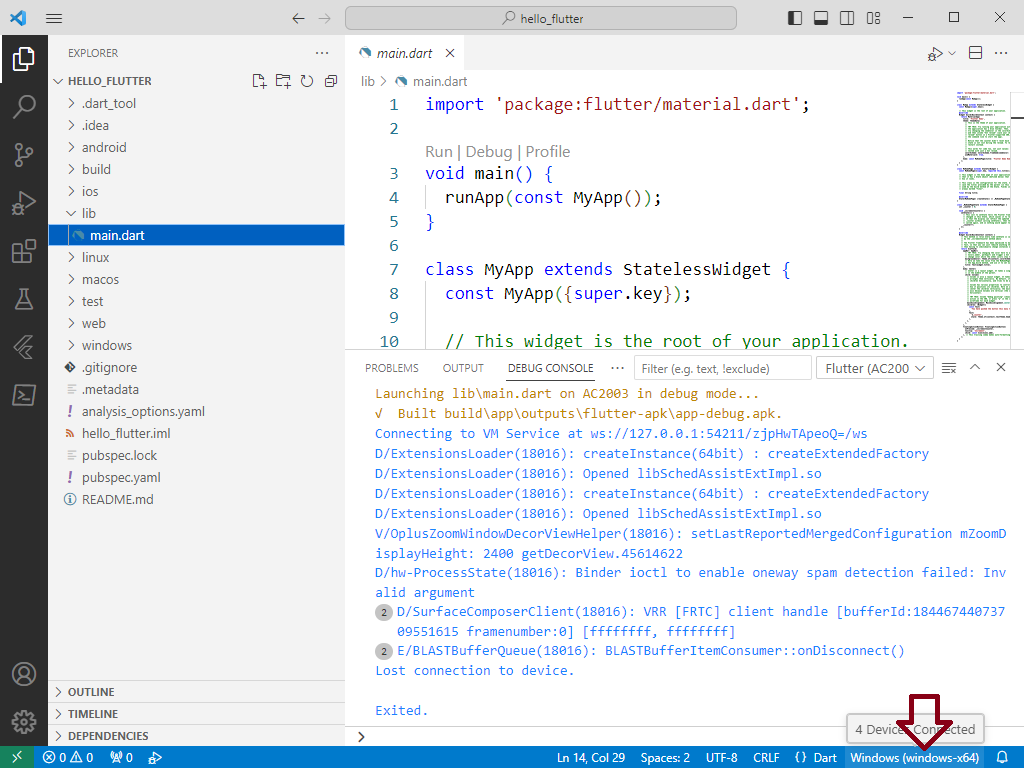

Click in the status bar at the bottom right on Windows (windodows-x64)

device

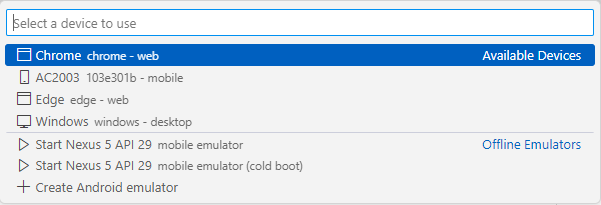

and choose Chrome as the device to use.

device

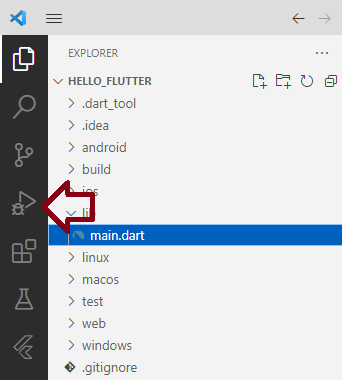

To run/debug your app you have to click on the triangle icon in the left bar

device

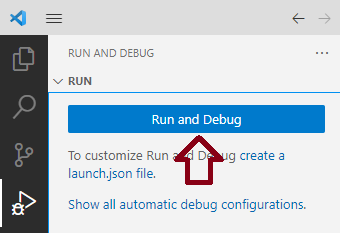

Click on the 'Run and Debug' button to run the app

device run

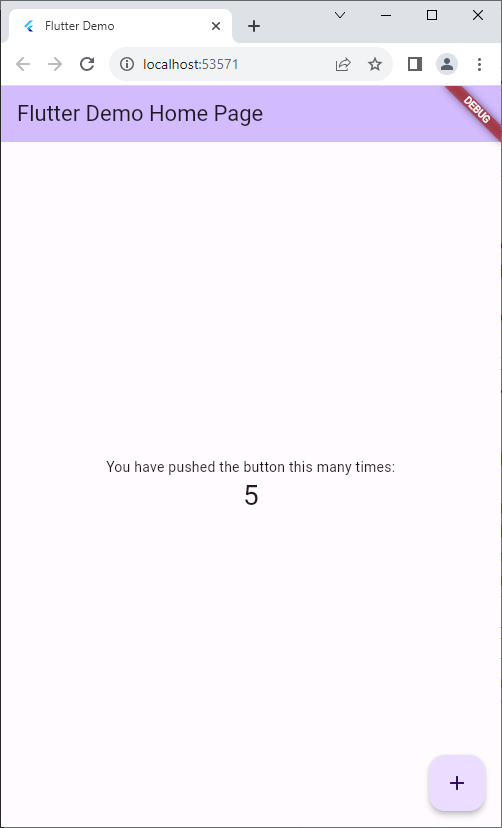

After a while

device run

WARNING

Note, however, that your browser will not support all the features of a real smartphone. For example, you won't be able to test out the AR part via your browser. But the Flutter part of the course should work without any problems.

# Your smartphone

If you set up developer options on your smartphone and give permission for USB debugging, you can run your App on your smartphone. Click in the status bar at the bottom right and choose your smartphone as the device to use.
Click on the 'Run and Debug' button to run the app

device run

First run

The first run might take some time, as there are probably some more android specific installations needed

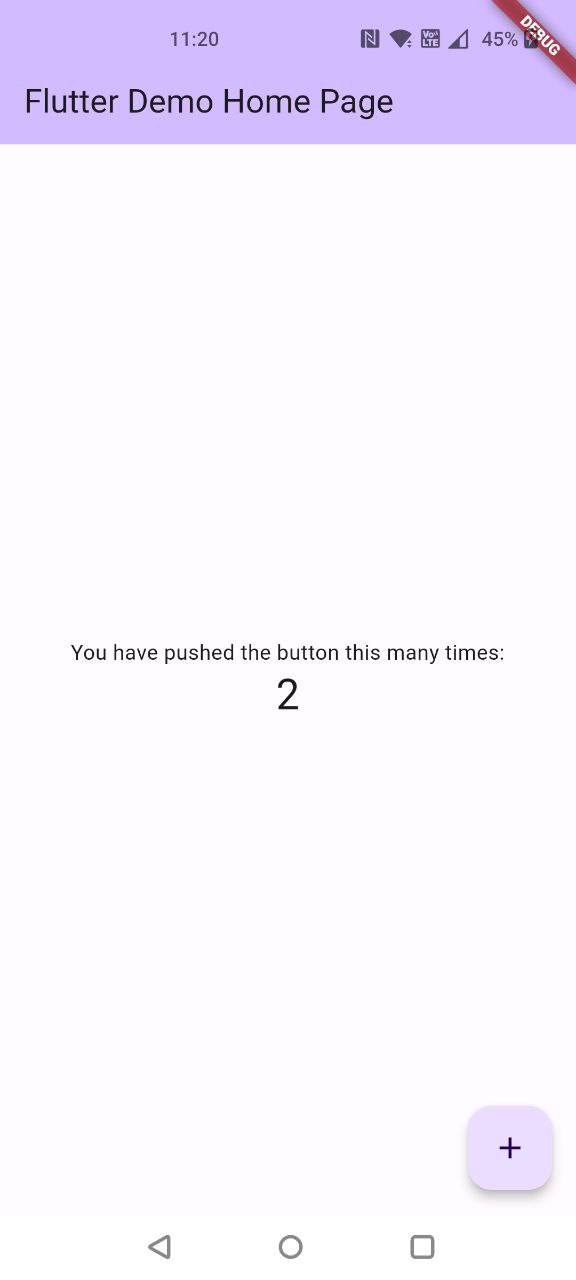

The result:

# An Emulator

The last option is to use an emulator. This is the least convenient option. You must first create an emulator via Android Studio (see previous page).

# Simplify

The MyApp class is by default to complex to explain how Flutter works. Therefore we are going to simplify it.
Delete the file widget_test.dart in the test folder in the root of your project
Delete all the contents of the lib\main.dart file and add the following content:

import 'package:flutter/material.dart';

void main() {
  runApp(
    const Center(
      child: Text(
        "Hello Flutter!",
        textDirection: TextDirection.ltr,
      ),
    ),
  );
}

1
2
3
4
5
6
7
8
9
10
11
12

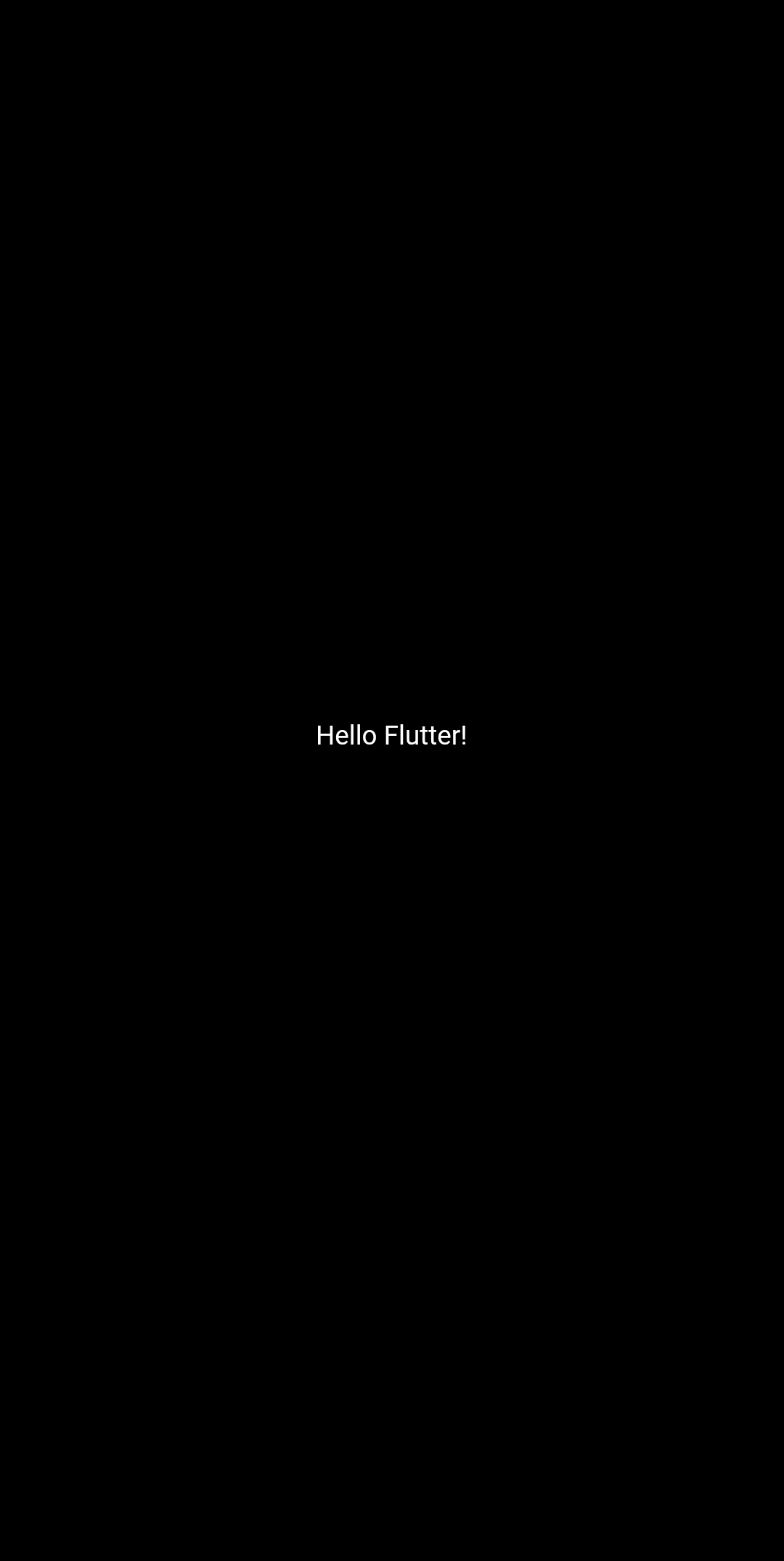

Re-run your app (in your web browser, the background may be grey.):

TIP

When you are programming in Flutter you will see a lot of rounded brackets. It is a good idea, when nesting those brackets, to put a comma behind these brackets and pressing alt-shift-f afterwards to format your code.

# Widgets

In Flutter (almost) everything is a Widget! Let's have a look at our hello_flutter app:

import 'package:flutter/material.dart';

void main() {
  runApp(
    const Center(
      child: Text(
        "Hello Flutter!",
        textDirection: TextDirection.ltr,
      ),
    ),
  );
}

1
2
3
4
5
6
7
8
9
10
11
12

code	description
`import 'package:flutter/material.dart';`	this package contains all Flutter widgets implementing Material Design
`main`	entry point of a Flutter application
`runApp`	shows a widget on the screen of your device
`Center`	a widget that centers its child within itself (text is displayed in center of app)
`Text`	a widget that displays a string of text with single style
`textDirection`	property of Text Widget

OFFICIAL DOCUMENTATION

All the widgets, classes, methods, properties, ... are described in detail in the Flutter - Dart API docs

# Material design

It's easy to prettify our user interface by using Material Design. There are a lot of widgets available in the material package that we imported before
Update the runApp method as shown below:

void main() {
  runApp(
    const MaterialApp(
      title: 'Hello Flutter App',
      home: Material(
        color: Colors.deepPurple,
        child: Center(
          child: Text(
            "Hello Flutter!",
            textDirection: TextDirection.ltr,
            style: TextStyle(color: Colors.white, fontSize: 36.0),
          ),
        ),
      ),
    ),
  );
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

code	description
`const MaterialApp()`	defines that the app will use Material Design
`title`	title of the app used by the device to identify the app for the user
`home`	property to define the widget for the default route of the app
`Material()`	material widget
`color`	background color of the material widget
`child`	property to define the one and only possible child widget of the material widget
`style`	property to apply a TextStyle to the text

# Scaffold class

Implements the basic material design visual layout structure
This class provides APIs for showing drawers, snack bars, and bottom sheets
Via the appBar property we can add an application bar to the app


void main() {
  runApp(
    MaterialApp(
      title: 'Hello Flutter App',
      home: Scaffold(
        appBar: AppBar(
          title: const Text("Title in App Bar"),
        ),
        body: const Material(
          color: Colors.deepPurple,
          child: Center(
            child: Text(
              "Hello Flutter!",
              textDirection: TextDirection.ltr,
              style: TextStyle(color: Colors.white, fontSize: 36.0),
            ),
          ),
        ),
      ),
    ),
  );
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

code	description
`Scaffold()`	class that implements the basic material design visual layout structure
`appBar`	property from `Scaffold` class to define an application bar
`AppBar()`	class to implement the application bar
`title`	property from `AppBar` class for the title of the application bar
`body`	property from `Scaffold` class to to define the primary content of this scaffold

# Organizing your code

Flutter applications are written in Dart
- Dart is an object oriented programming language, so we can make use of classes, objects, methods, ...
At this moment we have a very large main method
We can reorganize our code by using some object oriented programming techniques

void main() => runApp(const HelloFlutterApp());

class HelloFlutterApp extends StatelessWidget {
  const HelloFlutterApp({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: 'Hello Flutter App',
      home: Scaffold(
        appBar: AppBar(
          title: const Text("Title in App Bar"),
        ),
        body: const Material(
          color: Colors.deepPurple,
          child: Center(
            child: Text(
              "Hello Flutter!",
              textDirection: TextDirection.ltr,
              style: TextStyle(color: Colors.white, fontSize: 36.0),
            ),
          ),
        ),
      ),
    );
  }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

code	description
`void main() => ...`	creates object (instance) from `HelloFlutterApp` class
`class HelloFlutterApp extends StatelessWidget`	`HelloFlutterApp` class extends the `StatelessWidget` class. The class will inherit from the `StatelessWidget` class, which is a generic widget that never needs to change. `StatelessWidget` is the super class, `HelloFlutterApp` the sub class. This is how you implement inheritance in Dart
`const HelloFlutterApp({Key? key}) : super(key: key);`	All widgets should have a Key key as optional parameter in their constructor. Key is something used by flutter engine at the step of recognizing which widget in a list as changed.
`Widget build(BuildContext context)`	The `build` method is called when this widget is initialized and inserted into the tree.

# Modularity

When your application grows, defining all classes in one file quickly becomes messy. A good convention is to create a separate file for each class (or page).

Create a new folder pages in the lib folder
In this folder create a new file home.dart
- This file will contain a new class definition HomePage which returns our earlier created Scaffold with AppBar and Material widget

# lib\pages\home.dart

import 'package:flutter/material.dart';

class HomePage extends StatelessWidget {
  const HomePage({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: const Text("Title in App Bar"),
      ),
      body: const Material(
        color: Colors.deepPurple,
        child: Center(
          child: Text(
            "Hello Flutter!",
            textDirection: TextDirection.ltr,
            style: TextStyle(color: Colors.white, fontSize: 36.0),
          ),
        ),
      ),
    );
  }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

This HomePage widget is
- a Scaffold widget with AppBar as body
- a Material widget
- which centers the text Hello Flutter!

# lib\main.dart

import 'package:flutter/material.dart';
import './pages/home.dart';

void main() => runApp(const HelloFlutterApp());

class HelloFlutterApp extends StatelessWidget {
  const HelloFlutterApp({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return const MaterialApp(
      debugShowCheckedModeBanner: false,
      title: 'Hello Flutter App',
      home: HomePage(),
    );
  }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

code	description
`import './pages/home.dart';`	imports the `home.dart` file (and everything that is declared in it)
`debugShowCheckedModeBanner: false`	removes the ugly debugger banner
`home: HomePage()`	a `HomePage()` object is created and placed in the body. The `HomePage` widget contains a nice page with AppBar and body and will be showed inside the MaterialApp widget.

Your app should now look like the image below:

# Adding logic

Every application needs logic for performing tasks, calling an API,...
Because a widget is a class, you can add logic by writing methods

# Methods

A method is written in the class
Add the following sayHello() method to the HomePage widget:

class HomePage extends StatelessWidget {
  const HomePage({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      ...
    );
  }

  String sayHello() {
    String hello;
    DateTime now = DateTime.now();
    int hour = now.hour;

    if (hour < 12) {
      hello = "Good Morning";
    } else if (hour < 18) {
      hello = "Good Afternoon";
    } else {
      hello = "Good Evening";
    }

    return hello;
  }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

code	description
`String sayHello() { ... }`	a method named `sayHello` that returns a string
`if, else if, else`	a conditional if, else if, else statement

Call the method instead of showing the hardcoded Hello Flutter! string:

class HomePage extends StatelessWidget {
  const HomePage({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: const Text("Title in App Bar"),
      ),
      body: Material(
        color: Colors.deepPurple,
        child: Center(
          child: Text(
            sayHello(),
            textDirection: TextDirection.ltr,
            style: const TextStyle(color: Colors.white, fontSize: 36.0),
          ),
        ),
      ),
    );
  }

  String sayHello() {
    String hello;
    DateTime now = DateTime.now();
    int hour = now.hour;

    if (hour < 12) {
      hello = "Good Morning";
    } else if (hour < 18) {
      hello = "Good Afternoon";
    } else {
      hello = "Good Evening";
    }

    return hello;
  }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38

Since you call the function sayHello(), the Material widgets can't be a constant anymore. Don't forget to remove the const keyword.

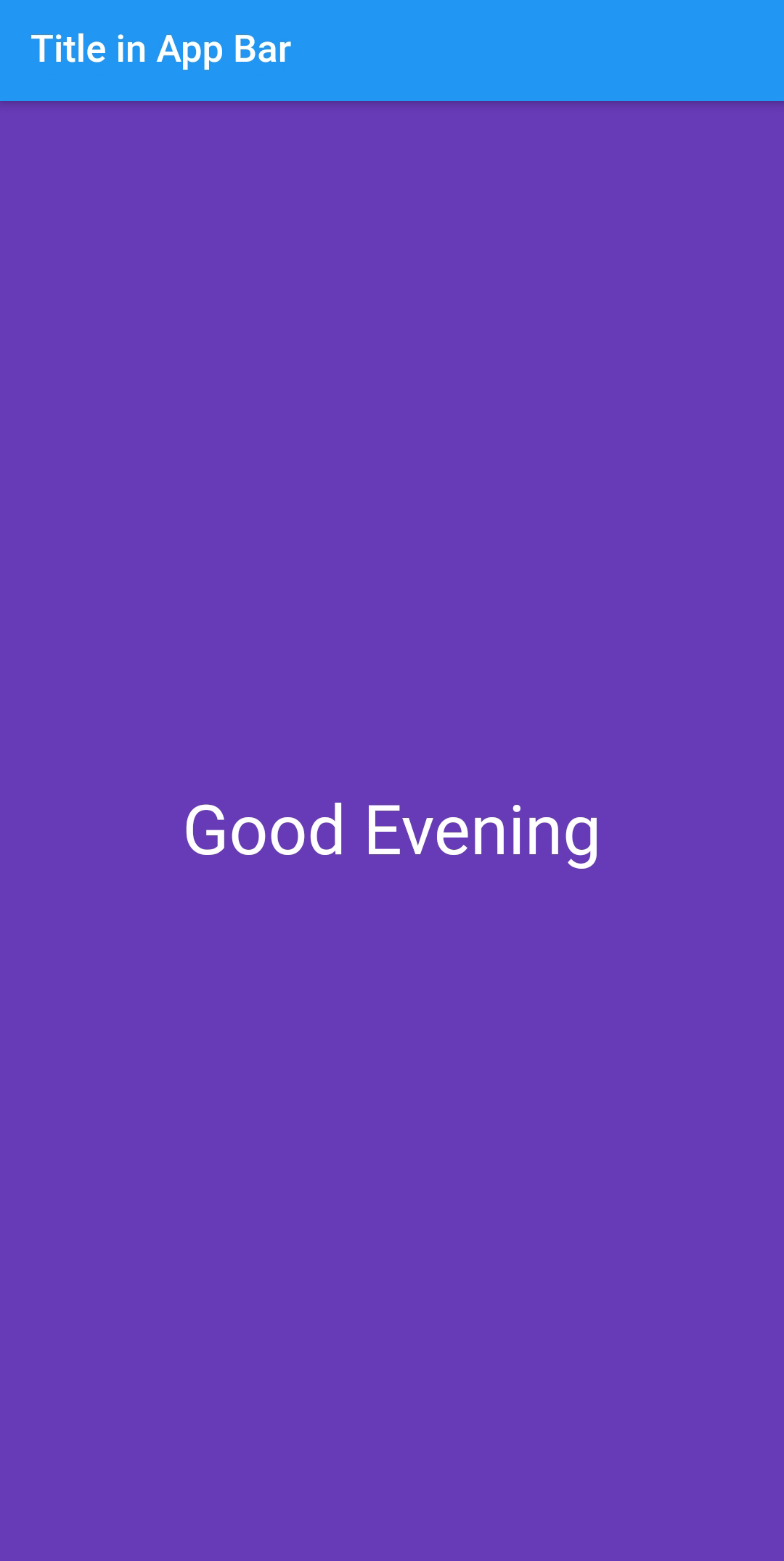

Your app should now look like the image below:

Well done! You've completed your first Flutter app. Let's try to make the UI a litte bit more attractive in the next section
