# 3D Animation

In the 3D Basics section of this course, you've learned to animate your 3D models by changing the 3D properties (x-, y-, z-axis, rotation, scale). We've called this Property Animation.
In this section we'll try to use the animations included in the model.
In the Get Started section you have created an AR experience that shows four different dinosaurs.

Nice, but our dino's are a bit static. Now let's try to add some movement to the dino's.

3D MODELS

Finding working 3D models (with animations) will be the biggest challenge in this part. Importing 3D models into Wikitude with the Wikitude 3D encoder can be really frustrating : the textures are not transferred, the animations are not read correctly, ... So be patient and hope for the best.
The Wikitude 3D encoder supports the .FBX 3D model type for encoding .wt3 files.
Some sites where you can try your luck downloading free 3D models: Free3D, TurboSquid, SketchFab

# Animations

First, let's have a look at the dino 3D models and see if these models include some animations.

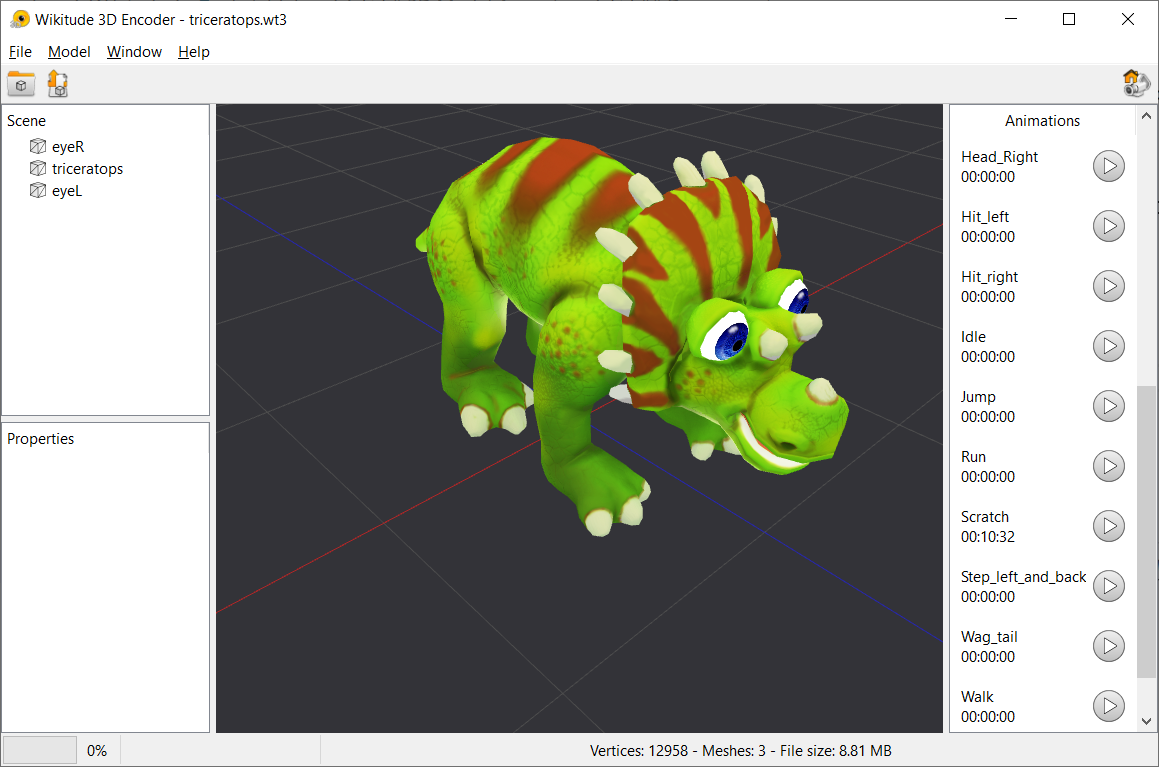

Open the Wikitude 3D encoder and choose File|Open fbx/wt3. Select triceratops.wt3 (in the samples\03_MultipleTargets_1_MultipleTargets\assets folder of your my_flutter_ar_app application)

Triceratops

The animations are displayed in a list on the right-hand side of the application.
Each row of the list contains the ID of the animation, a control button and the time that passed after you started the animation. Clicking the play button will start the animation.
You need the IDs of the animations you want to use in your application. For the triceratops we will use the Scratch animation. Be carefull, this ID is case sensitive.

# Playing Animations

Open your my_flutter_ar_app application in VSCode and open the file multiplesimultaneoustargets.js in the folder samples\03_MultipleTargets_1_MultipleTargets\js
Add the following lines (add a comma to the previous line as well)

var World = {
    loaded: false,
    dinoSettings: {
        diplodocus: {
            scale: 0.4,
            action: "Drink"
        },
        spinosaurus: {
            scale: 0.004,
            action: "Creep"
        },
        triceratops: {
            scale: 0.4,
            action: "Scratch"
        },
        tyrannosaurus: {
            scale: 0.4,
            action: "Run"
        }
    },

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

We've added the ID of the animation to be played for each dino in the action property of the dinoSettings.
Now start the animations like this.

        this.dinoTrackable = new AR.ImageTrackable(this.tracker, "*", {
            onImageRecognized: function(target) {
                /*
                    Create 3D model based on which target was recognized.
                 */
                var model = new AR.Model("assets/models/" + target.name + ".wt3", {
                    scale: World.dinoSettings[target.name].scale,
                    rotate: {
                        z: 180
                    },
                    onError: World.onError
                });

                /*
                AR.platform.sendJSONObject({
                    "image_scanned" : target.name
                });
                */

                /* Adds the model as augmentation for the currently recognized target. */
                this.addImageTargetCamDrawables(target, model);

                // instantiate the model animation with the animation id (in the action property)
                var animation = new AR.ModelAnimation(model, World.dinoSettings[target.name].action);
                // start the animation after 2 seconds, repeat infinitely (-1)
                setTimeout(function() { animation.start(-1); }, 2000);

                World.hideInfoBar();
            },
            onError: World.onError
        });

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

Scan the cards and watch the diplodocus drinking, the triceratops scratching, ...

Of course, you can combine these animations with everything you have already learned in the 3D basics section.
