Flutter integration

About 4 min

Flutter integration

Let's integrate our Unity-Vuforia AR scene into a Flutter application

Tested version combination

Use this combination for the course:

Tool	Version
Flutter	3.44.0
Unity	Unity 6.3 LTS, latest 6000.3.x patch
Vuforia Engine	11.4.4
Flutter Unity embedding	`flutter_embed_unity` 2.0.0
Android SDK for this integration	API 36

Vuforia 11.4.4 supports Unity 6 LTS from 6000.0.38f1 onward, and flutter_embed_unity currently documents support for Unity 6000.0 and 6000.3 LTS on Android. That makes Unity 6.3 LTS the best course choice for this integration.

Do not use Unity 6000.4 for this course integration yet

Unity 6000.4 is a newer Update release, but the Flutter embedding plugin documentation currently lists Unity 6000.0 and 6000.3 LTS support. For the Flutter - Unity - Vuforia integration, stay on Unity 6.3 LTS.

Flutter version 3.44.0

We tested and verified everything with Flutter version 3.44.0
We cannot guarantee that the Vuforia integration works with newer Flutter versions
For the least troubles: make sure to use this version when playing around with Vuforia!

Use Flutter version 3.44.0

If you've already installed another version of the Flutter SDK, you can check out the 3.44.0 version.
The Flutter SDK is a GitHub Repo, which allows you to perform the following commands in the Flutter SDK location
- Open a terminal in the Flutter SDK folder
- Execute the command git checkout v3.44.0
The flutter --version command should give an output similar to the below:

flutter --version

Flutter 3.44.0 - channel stable - https://github.com/flutter/flutter.git
Tools - Dart 3.x - DevTools 2.x

Create the Flutter application

Create a new Flutter application (you should already know how!)
Add the flutter_embed_unity packages to the pubspec.yaml and save the file!

dependencies:
  flutter:
    sdk: flutter
  flutter_embed_unity: ^2.0.0

As an example we use the EmbedUnity widget directly in our main.dart file
lib/main.dart

import 'package:flutter/material.dart';
import 'package:flutter_embed_unity/flutter_embed_unity.dart';

void main() {
  runApp(const MyApp());
}

class MyApp extends StatelessWidget {
  const MyApp({super.key});

  // This widget is the root of your application.
  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: 'Flutter Demo Test',
      theme: ThemeData(
        colorScheme: ColorScheme.fromSeed(seedColor: Colors.deepPurple),
      ),
      home: Scaffold(
        body: Column(
          children: [
            Expanded(
              child: EmbedUnity(
                onMessageFromUnity: (String message) {
                  // Receive message from Unity
                },
              ),
            ),
            ElevatedButton(
              onPressed: () {
                // Send message to Unity
                sendToUnity(
                  "MyGameObject", // Game object name
                  "SetRotationSpeed", // Unity script function name
                  "42", // Message
                );
              },
              child: const Text("Set rotation speed"),
            ),
          ],
        ),
      ),
    );
  }
}

Install the Flutter plugin in Unity

Now open the Unity project
If this Unity project does not have Vuforia installed yet, add the course Vuforia package via Window > Package Manager > + > Add package from git URL...:

https://github.com/mcloots/vuforia_package_11.4.4.git

Install AR Foundation via Window - Package Management - Package Manager - Unity Registry
Download the Flutter plugin flutter_embed_unity_6000_0.unitypackage at the following linkopen in new window
Make sure the unity project is open and double click to install the flutter_embed_unity_6000_0.unitypackage
Follow the steps to import it in Unity

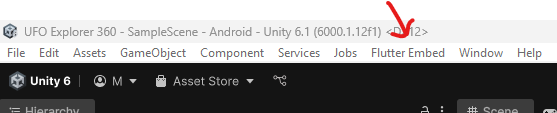

When you see the Flutter Embed menu item appearing in Unity, the installation is done!

Configurations to be made

Unity project

Before we can export our unity project to our flutter app, we have to configure some settings

Open a script (doesn't matter which one) in VS Code. This way we can navigate to a Flutter Embed script that we need to modify:
- Assets\FlutterEmbed\Editor\ProjectExportChecker.cs
- Find and remove the !architectures.HasFlag(AndroidArchitecture.ARMv7) ||
- Save your script!
Go to File > Build Profiles
- Choose Android and Switch Platform

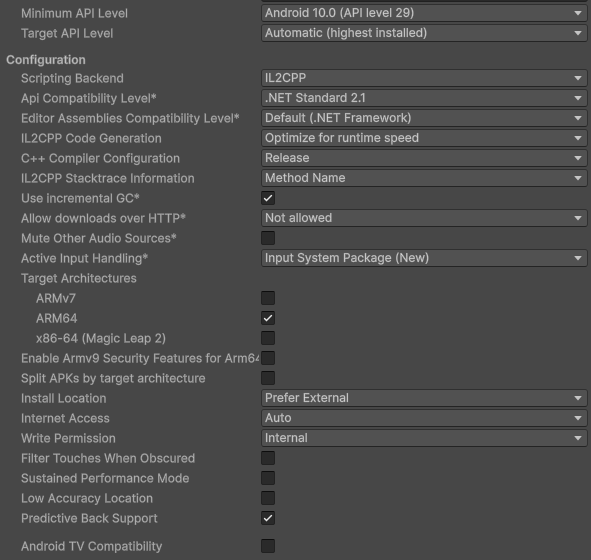

Open the Player Settingsand change the following under the Other settings > Configuration section:
- Change Configuration - Scripting Backend to IL2CPP
- Target Architectures, only select ARM64 (uncheck ARMv7)
- Set the minimum API Level to Android 10.0 (API level 29)
- Set the target API Level to Automatic (highest installed)

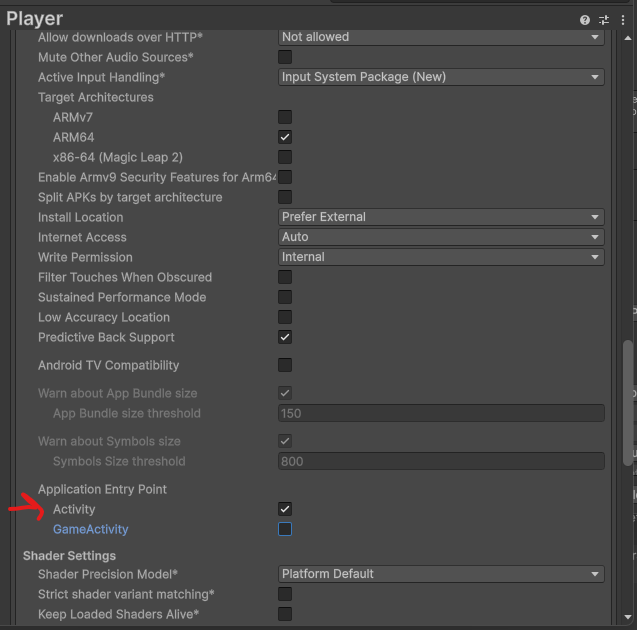

Now open the Player Settings
- Make sure to select Activity as Application Entry Point

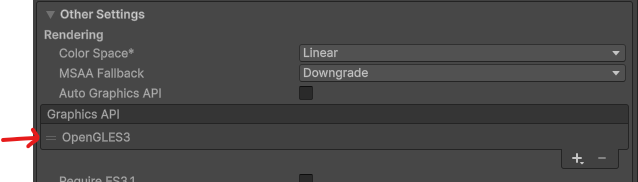

- Find the Graphics API and make sure OpenGLES3 is the only option here (delete Vulkan if present!)

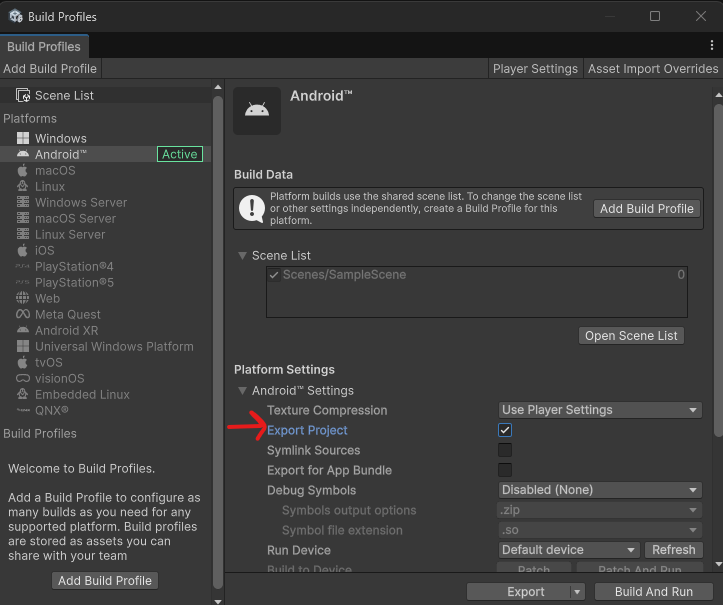

At last tick the Export Project checkbox in the Build Profiles window
Export the unity project by clicking on the Flutter Embed menu item and choose Android.
- Select the appropriate folder
  - This must be your-flutter-project/android/unityLibrary
- The build might take some time!

Flutter application

The final steps need to be done in the Flutter application

Go to android\app\build.gradle.kts and
- Set the minSdk to 29
- Set the compileSdk to 36
- Set the targetSdk to 36
- Set the ndkVersion to "28.2.13676358" --> make sure to have this ndk installed, this can be checked in Android SDK Manager
- Add a dependency to the UnityLibrary project

plugins {
    id("com.android.application")
    // The Flutter Gradle Plugin must be applied after the Android and Kotlin Gradle plugins.
    id("dev.flutter.flutter-gradle-plugin")
}

android {
    namespace = "com.example.flutter_integration"
    compileSdk = 36
    ndkVersion = "28.2.13676358"

    compileOptions {
        sourceCompatibility = JavaVersion.VERSION_17
        targetCompatibility = JavaVersion.VERSION_17
    }

    defaultConfig {
        // TODO: Specify your own unique Application ID (https://developer.android.com/studio/build/application-id.html).
        applicationId = "com.example.flutter_integration"
        // You can update the following values to match your application needs.
        // For more information, see: https://flutter.dev/to/review-gradle-config.
        minSdk = 29
        targetSdk = 36
        versionCode = flutter.versionCode
        versionName = flutter.versionName
    }

    buildTypes {
        release {
            // TODO: Add your own signing config for the release build.
            // Signing with the debug keys for now, so `flutter run --release` works.
            signingConfig = signingConfigs.getByName("debug")
        }
    }
}

kotlin {
    compilerOptions {
        jvmTarget = org.jetbrains.kotlin.gradle.dsl.JvmTarget.JVM_17
    }
}

flutter {
    source = "../.."
}

dependencies {
    implementation(project(":unityLibrary"))
}

Go to android\settings.gradle.kts and add include(":unityLibrary") and include(":unityLibrary:xrmanifest.androidlib") before including the app!

pluginManagement {
    val flutterSdkPath =
        run {
            val properties = java.util.Properties()
            file("local.properties").inputStream().use { properties.load(it) }
            val flutterSdkPath = properties.getProperty("flutter.sdk")
            require(flutterSdkPath != null) { "flutter.sdk not set in local.properties" }
            flutterSdkPath
        }

    includeBuild("$flutterSdkPath/packages/flutter_tools/gradle")

    repositories {
        google()
        mavenCentral()
        gradlePluginPortal()
    }
}

plugins {
    id("dev.flutter.flutter-plugin-loader") version "1.0.0"
    id("com.android.application") version "9.0.1" apply false
    id("org.jetbrains.kotlin.android") version "2.3.20" apply false
}

include(":unityLibrary")
include(":unityLibrary:xrmanifest.androidlib")
include(":app")

Go to android\build.gradle.kts and add the highlighted code below

allprojects {
    repositories {
        google()
        mavenCentral()
        flatDir {
            dirs(file("${project(":unityLibrary").projectDir}/libs"))
        }
    }
}

val newBuildDir: Directory =
    rootProject.layout.buildDirectory
        .dir("../../build")
        .get()
rootProject.layout.buildDirectory.value(newBuildDir)

subprojects {
    val newSubprojectBuildDir: Directory = newBuildDir.dir(project.name)
    project.layout.buildDirectory.value(newSubprojectBuildDir)
}
subprojects {
    project.evaluationDependsOn(":app")
}

tasks.register<Delete>("clean") {
    delete(rootProject.layout.buildDirectory)
}

Go to android\gradle.properties and add unityStreamingAssets=

org.gradle.jvmargs=-Xmx8G -XX:MaxMetaspaceSize=4G -XX:ReservedCodeCacheSize=512m -XX:+HeapDumpOnOutOfMemoryError
android.useAndroidX=true
# This newDsl flag was added by the Flutter template
android.newDsl=false
# This builtInKotlin flag was added by the Flutter template
android.builtInKotlin=false
unityStreamingAssets=

Update ProGuard settings

Go to android\unityLibrary\proguard-unity.txt.
Find this line:

-ignorewarnings

Remove the line or put it in comment:

# -ignorewarnings

Update MainActivity

Go to android\app\src\main\kotlin\com\example\<project_name>\MainActivity.kt.
Replace the content of the file with:

package com.example.flutter_integration

import com.learntoflutter.flutter_embed_unity_android.unity.FakeUnityPlayerActivity

class MainActivity : FakeUnityPlayerActivity()

Make sure the package line matches the package name of your Flutter project. For example, if your project uses another name than flutter_integration, update the package line accordingly.

Android < 13 with ARFoundation

If you create a Unity project that uses ARFoundation, Unity can crash on certain Android versions when ARFoundation is activated. This only happens on Android < 13.

This can be fixed by using FlutterFragmentActivity instead of FakeUnityPlayerActivity in android\app\src\main\kotlin\package-name\project-name\MainActivity.kt

package com.example.flutter_integration

import io.flutter.embedding.android.FlutterFragmentActivity

class MainActivity : FlutterFragmentActivity()

Run and be amazed!

Contact your lecturers (or maybe first some AI agents) if you get a black screen.
